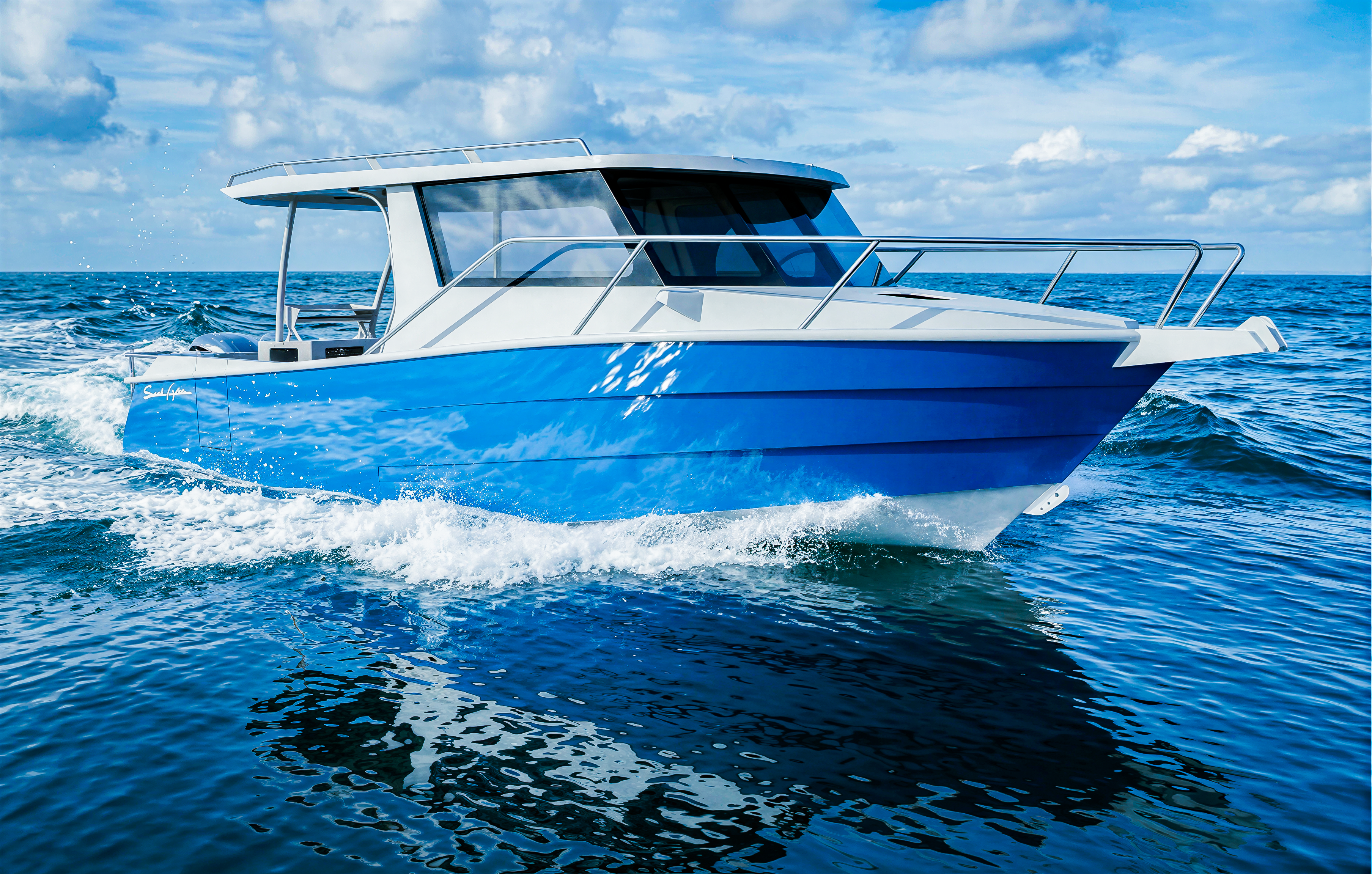

SF09
MONTEBELLO 8600 HARDTOP
AVAILABLE IN A STANDARD AND FORWARD RAKING WINDSCREEN
*Vessel Currently Under Construction*
Crafted for adventure, forged with the Australian spirit.
Combining high-performance precision with rugged elegance and quality materials, proudly made right here in Perth, Western Australia.

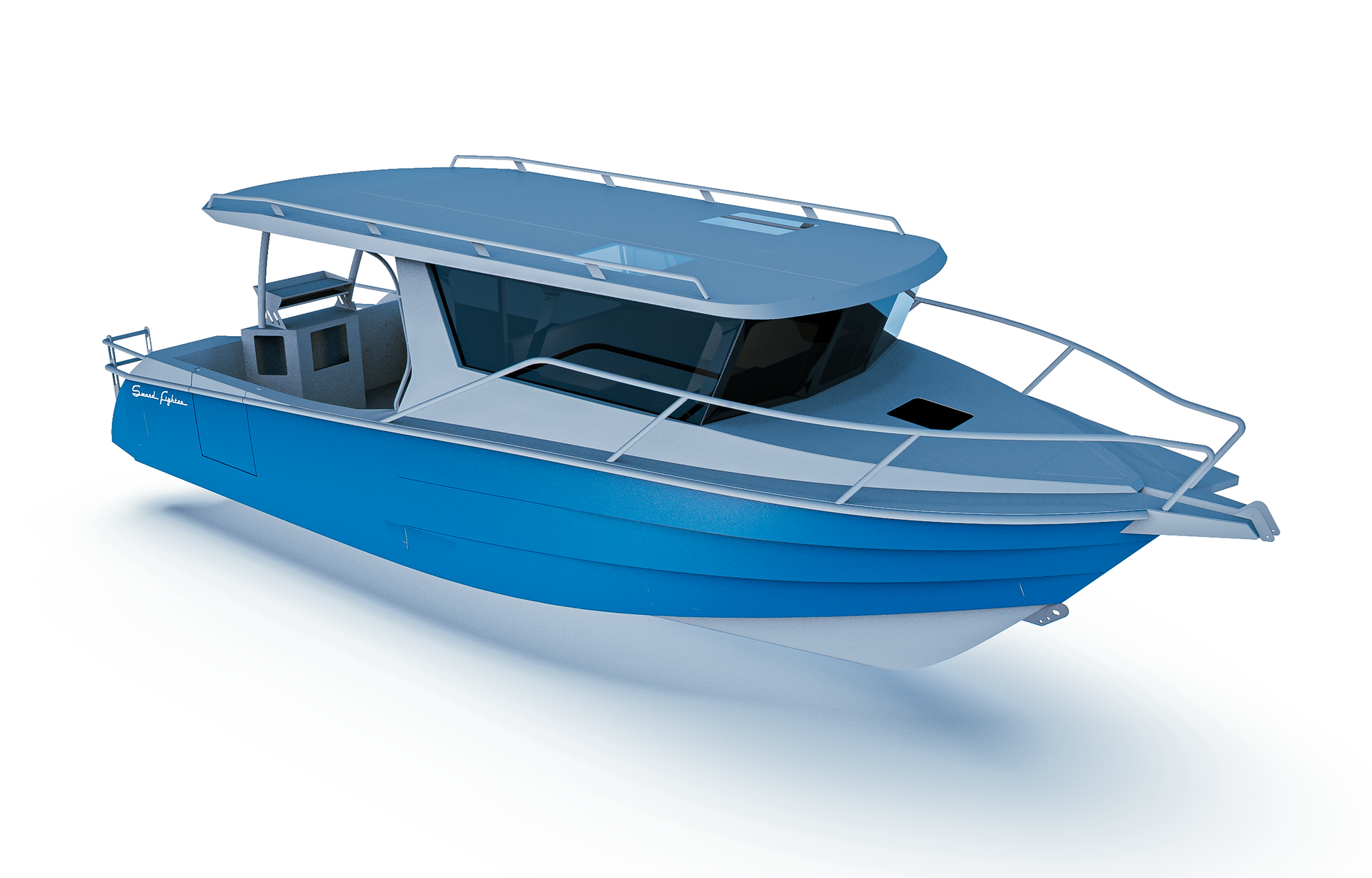

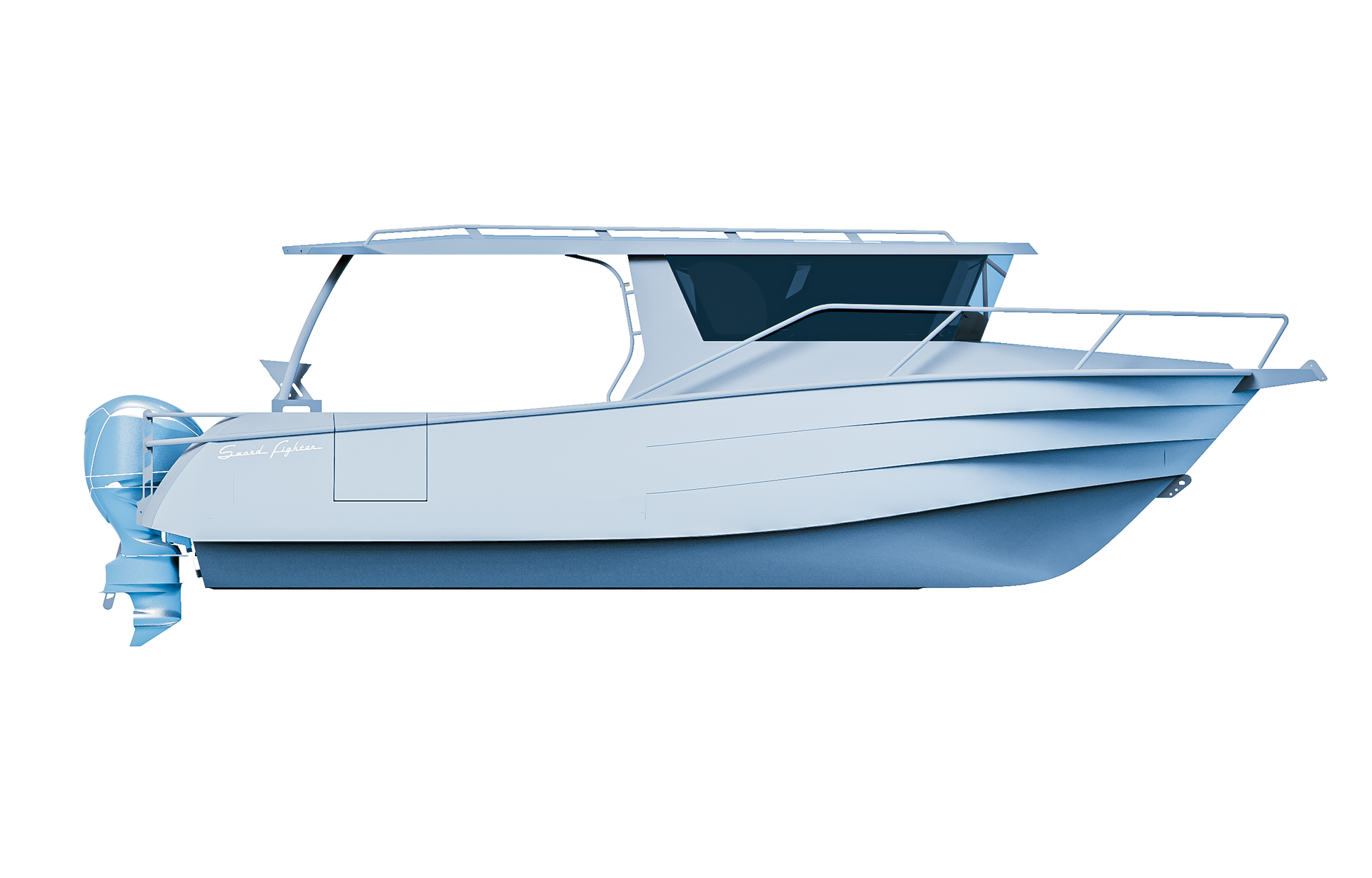

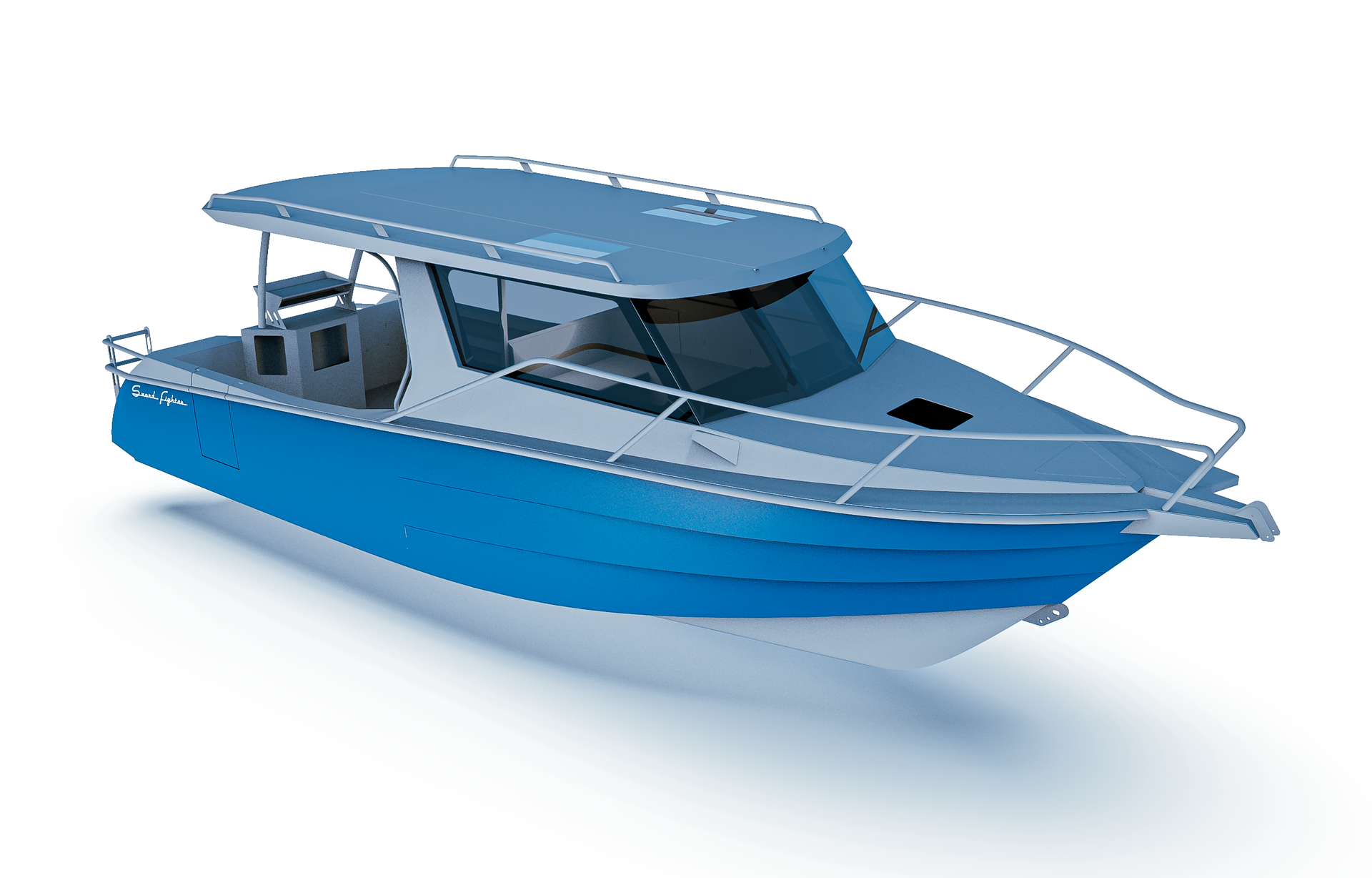

FORWARD RAKING WINDSCREEN
GENERAL SPECIFICATIONS
OVERALL LENGTH - 9.56m / 31ft’ 4.4in”
BEAM - 2.98m / 9ft’ 9.4in”
TOTAL HEIGHT - 2.85m / 9ft’ 4.2in”
DRAFT - 450mm / 1ft’ 5.7in”
ALUMINIUM WEIGHT - 2,410kg or 2,370kg
LIGHTSHIP DISPLACEMENT - 3,330kg
DESIGN DISPLACEMENT - 4,257kg or 4,185kg
FUEL VOLUME - 2x 412L
FRESH WATER VOLUME - 200L (If Fitted)
DESIGN POWER - Twin 300HP
LEG LENGTH - Twin 25"
TRANSOM RAKE - 15°
ABP MAX POWER RATING - Twin 300HP
ABP MAX PERSONS - 10
ABP MAX LOAD - 1,710KG (Person + Engine + Cargo)
ABP FLOTATION - BASIC (Optional)
ABP - FOAM REQUIRED - 2.89m³
FEATURES
Custom Bow & Knuckle Design
Modified Shearline
Full-Length Roof
Fully Lockable, Custom Cabin Arrangement
With L-Shaped Seating
Forward Raking Windscreen
Custom Bow Rails & Roof Rails
Provisions For Outriggers And A Downrigger
Toilet/Shower (Wet Head) With Vents
Starboard Tuna Door
Two Roof Hatches
Provisions For A 1000 Viper Drum Winch

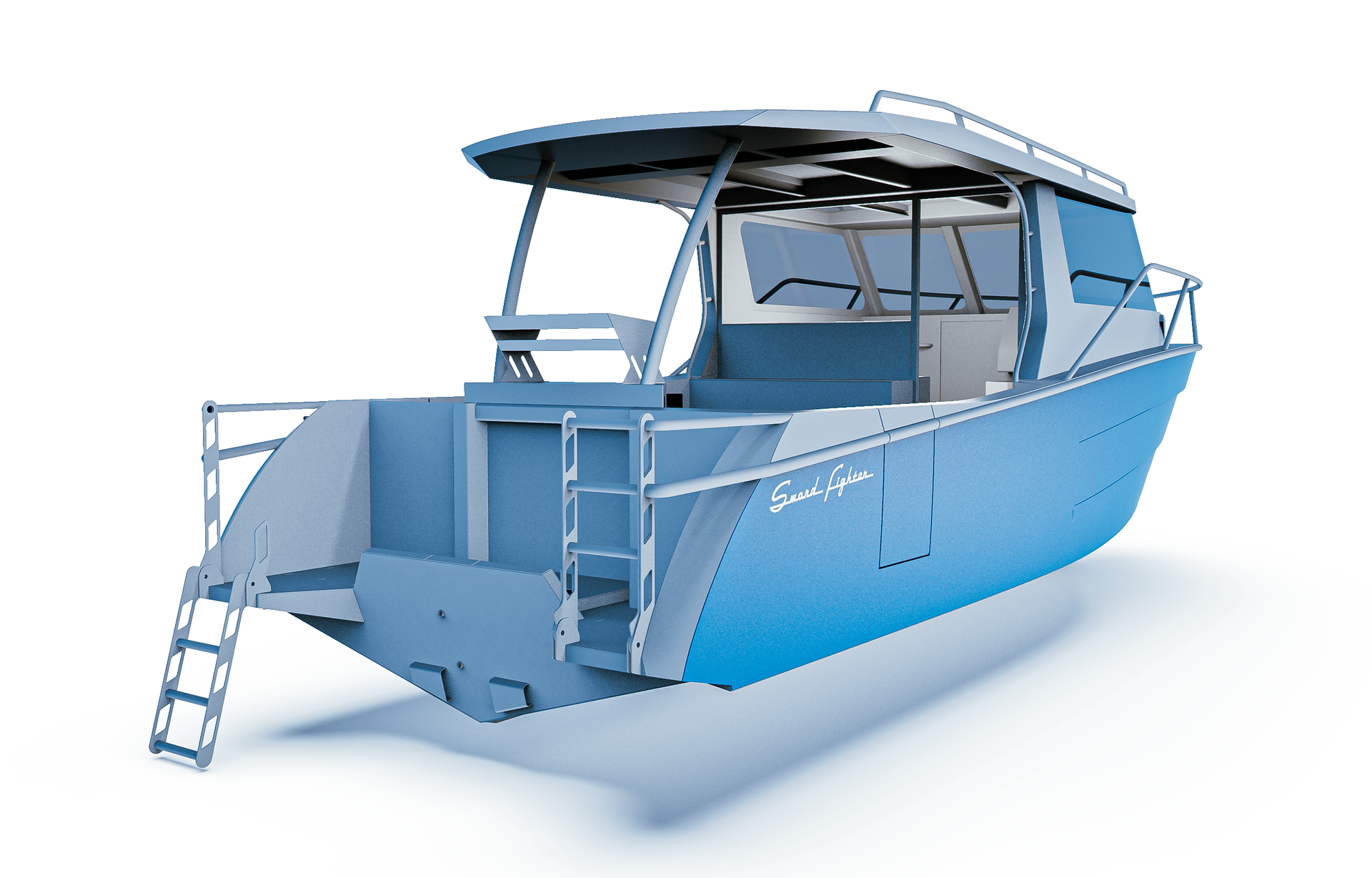

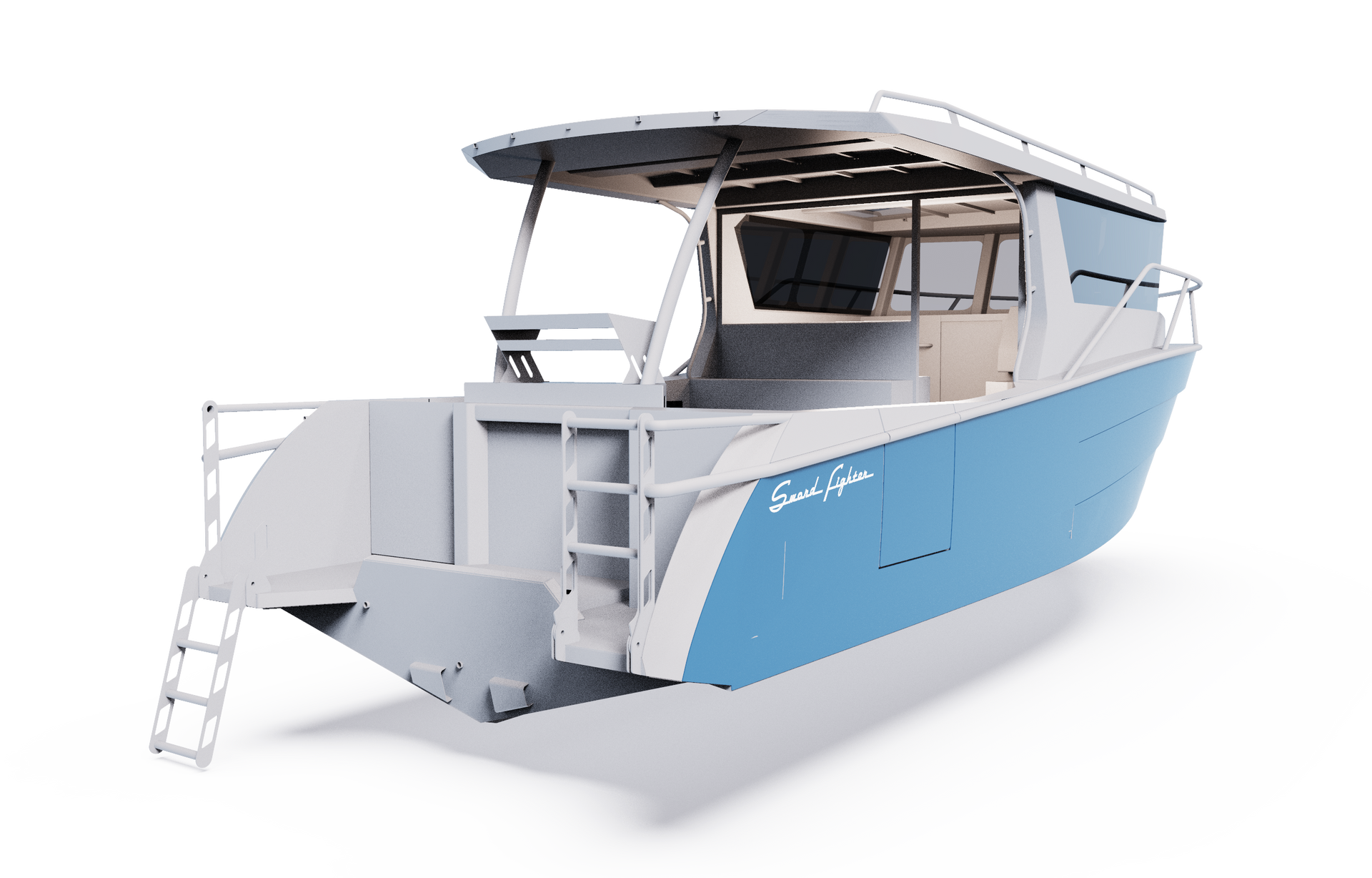

Full-To-Deck Transom Walkthrough

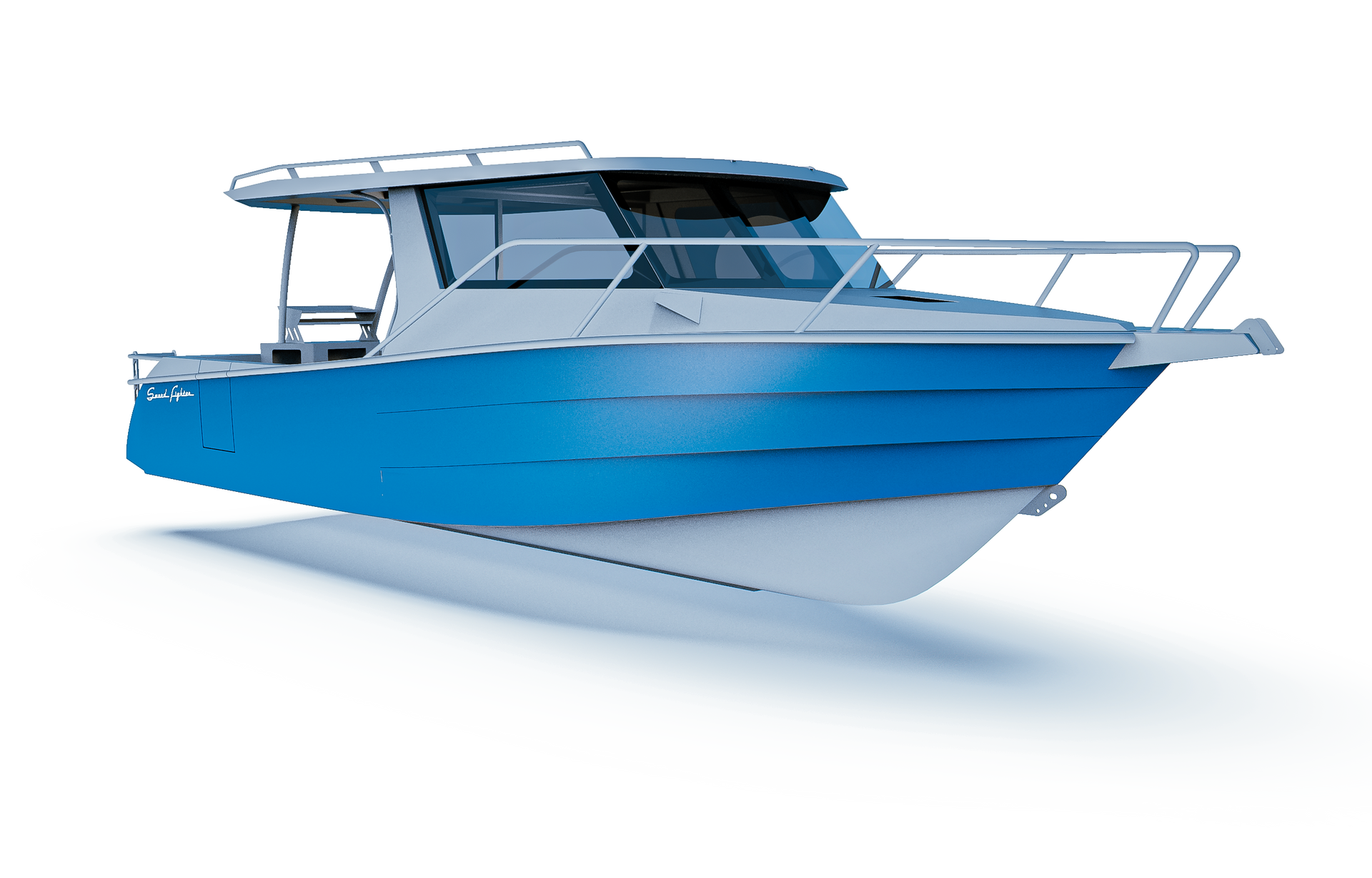

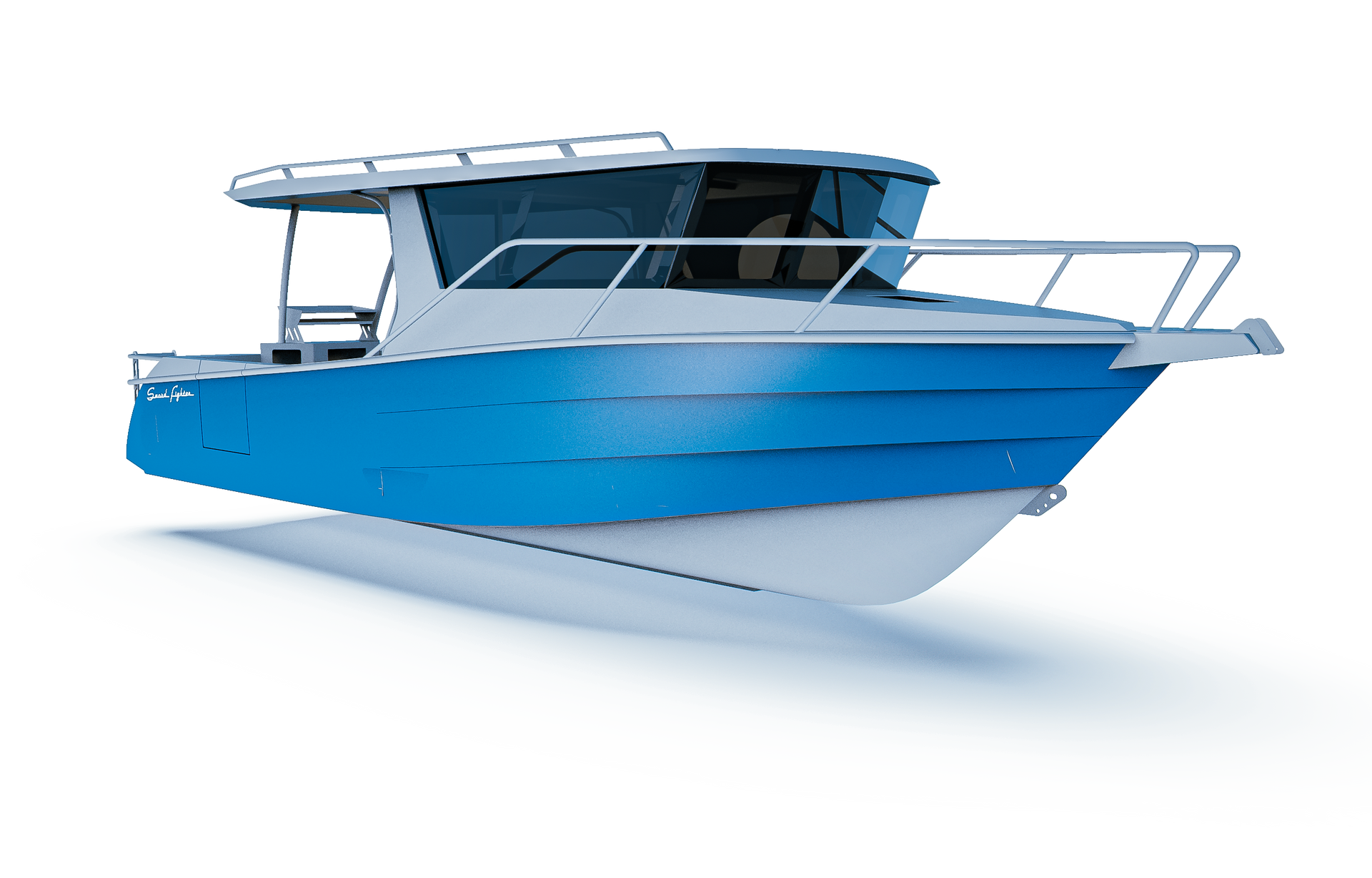

Standard or Forward Raking Windscreen
MAKE IT YOUR OWN

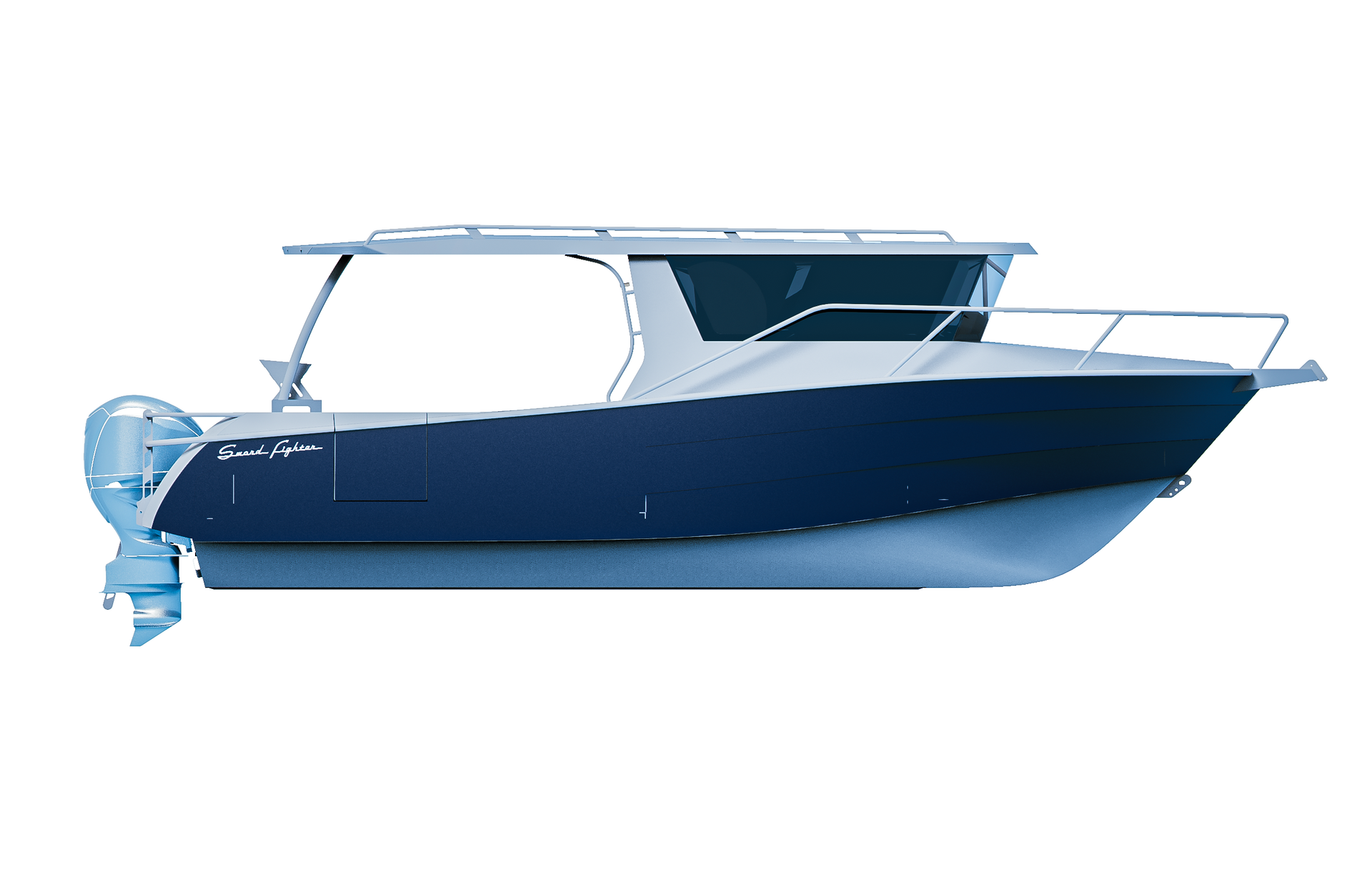

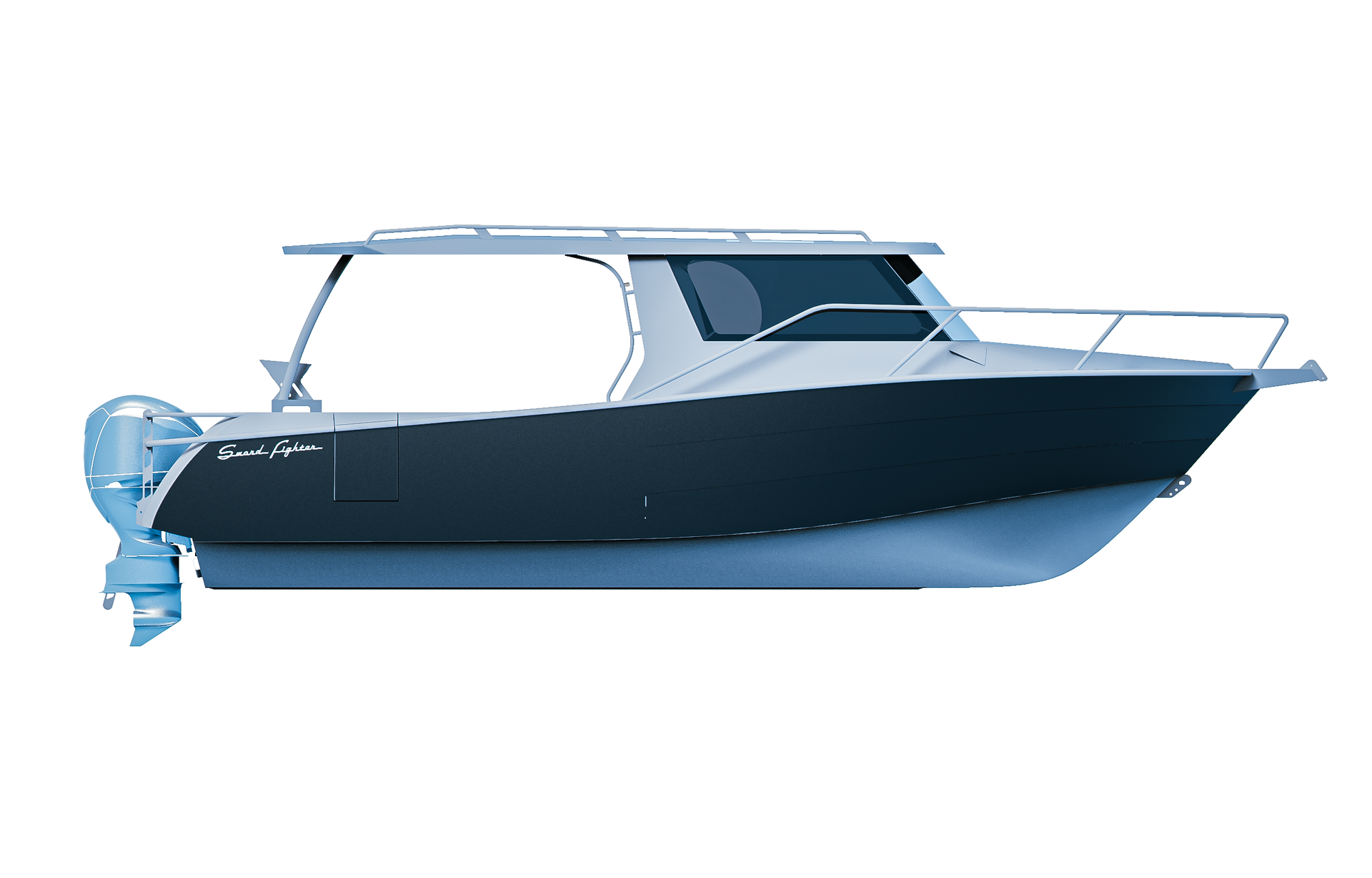

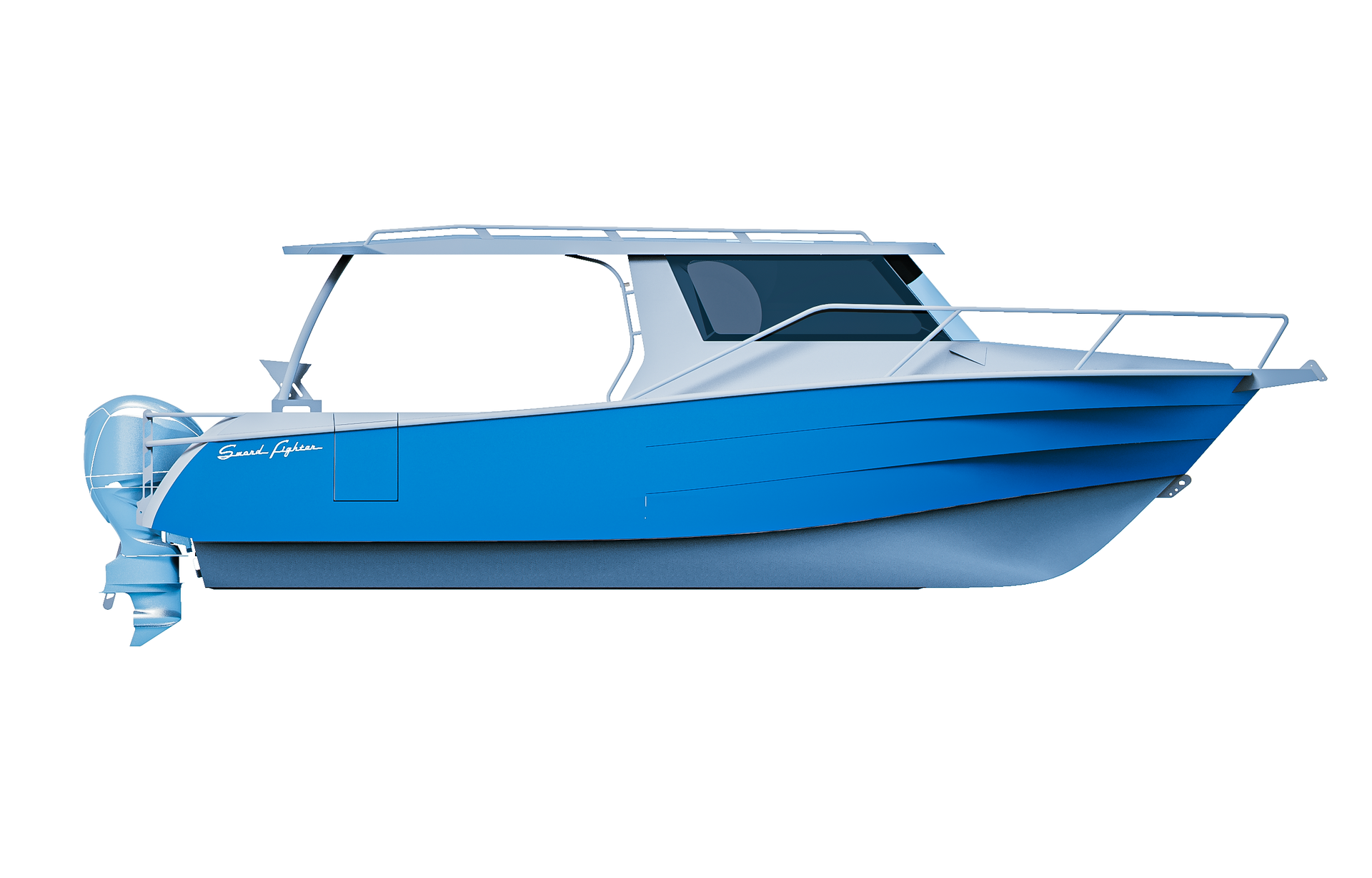

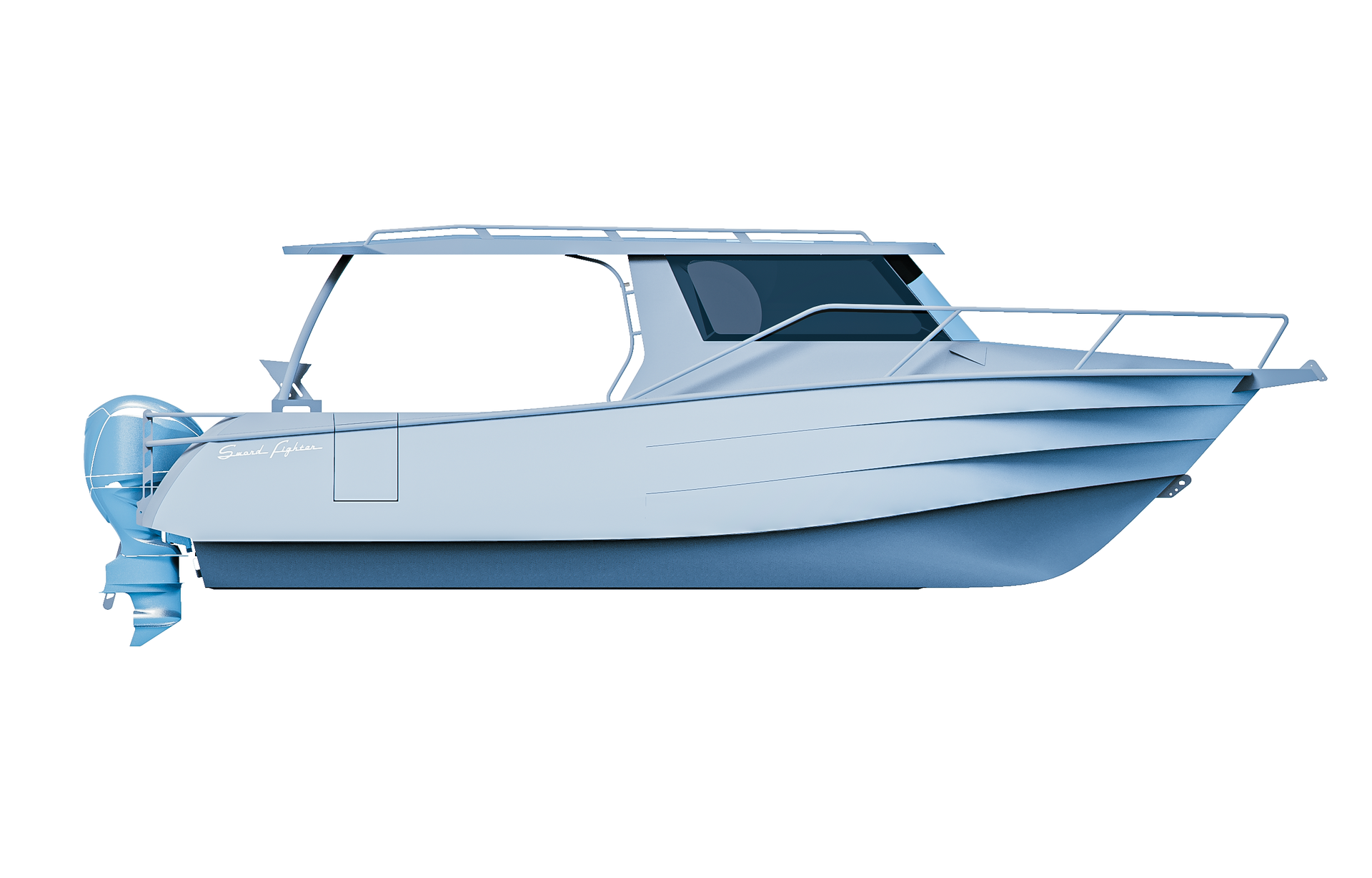

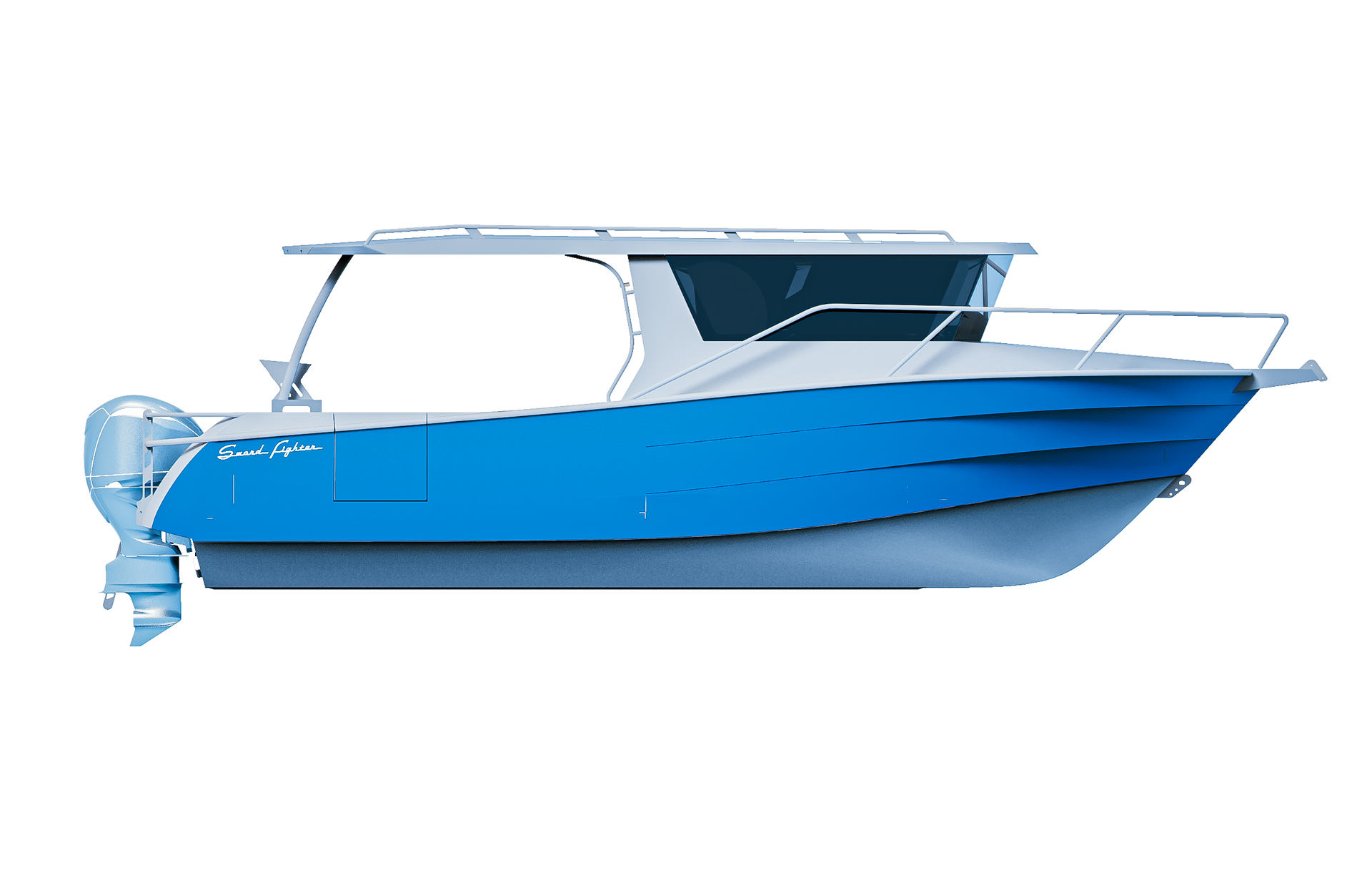

Available in 4x colour options in both standard or forward raking windscreen configuration.
Enquire Today
Click the button below to get in contact with our sales team to find out more about SF09.
